N-Fill Smart ATO

Dual sensor · Advanced refill logic · Over-fill protection

Best ATO Under $100

The N-Fill Smart ATO by Nature Dimensions keeps your aquarium water level stable so salinity and waterlines stay consistent with minimal effort. Dual float sensors with built-in redundancy, a quiet DC pump, and an intelligent controller with fail-safe protection work together to deliver reliable, hands-free top offs for both freshwater and reef tanks.

Key Features

• Dual float sensors and advanced refill logic
  Two independent float switches monitor the same water line. The controller starts a refill whenever either sensor detects low water. Even if one sensor fails, the other still triggers top offs. This redundancy helps prevent missed refills and provides an extra layer of stability compared to most ATOs on the market.
• Optional sensor arm extension for deeper tanks

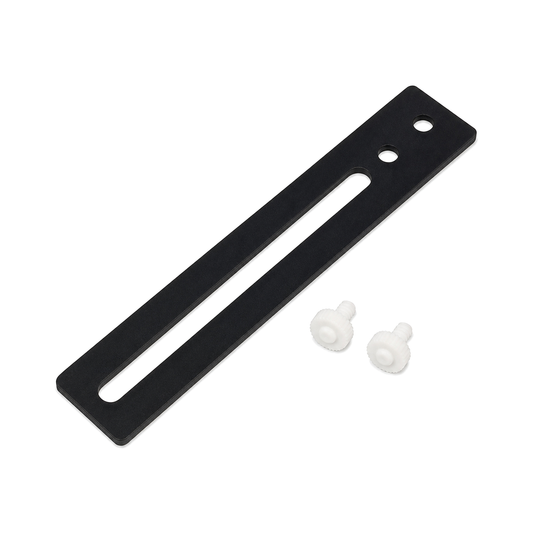

  Add the Extra Sensor Arm Extension when the standard sensor arm does not reach the desired water level. The accessory adds approximately 5 in (13 cm) of mounting depth, extending the total sensor reach to approximately 10 in (25 cm) below the tank rim, depending on the installation. The sensor cable split connector must remain safely above the highest possible water level and must not be submerged.
• Smart over-fill protection
  If the pump runs for more than about 90 seconds, the controller pauses filling and triggers an audible alarm with a red Status LED. This controller-based fail-safe helps prevent overfilling if a float is obstructed, flow is restricted, the tubing is siphoning, or the reservoir behaves unexpectedly.
• Intuitive controller with clear status indication

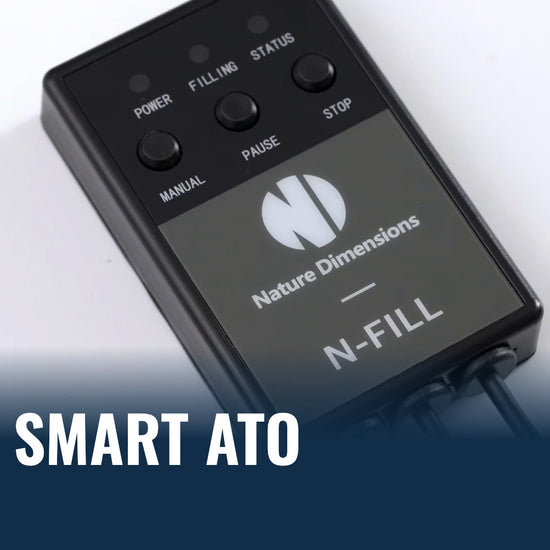

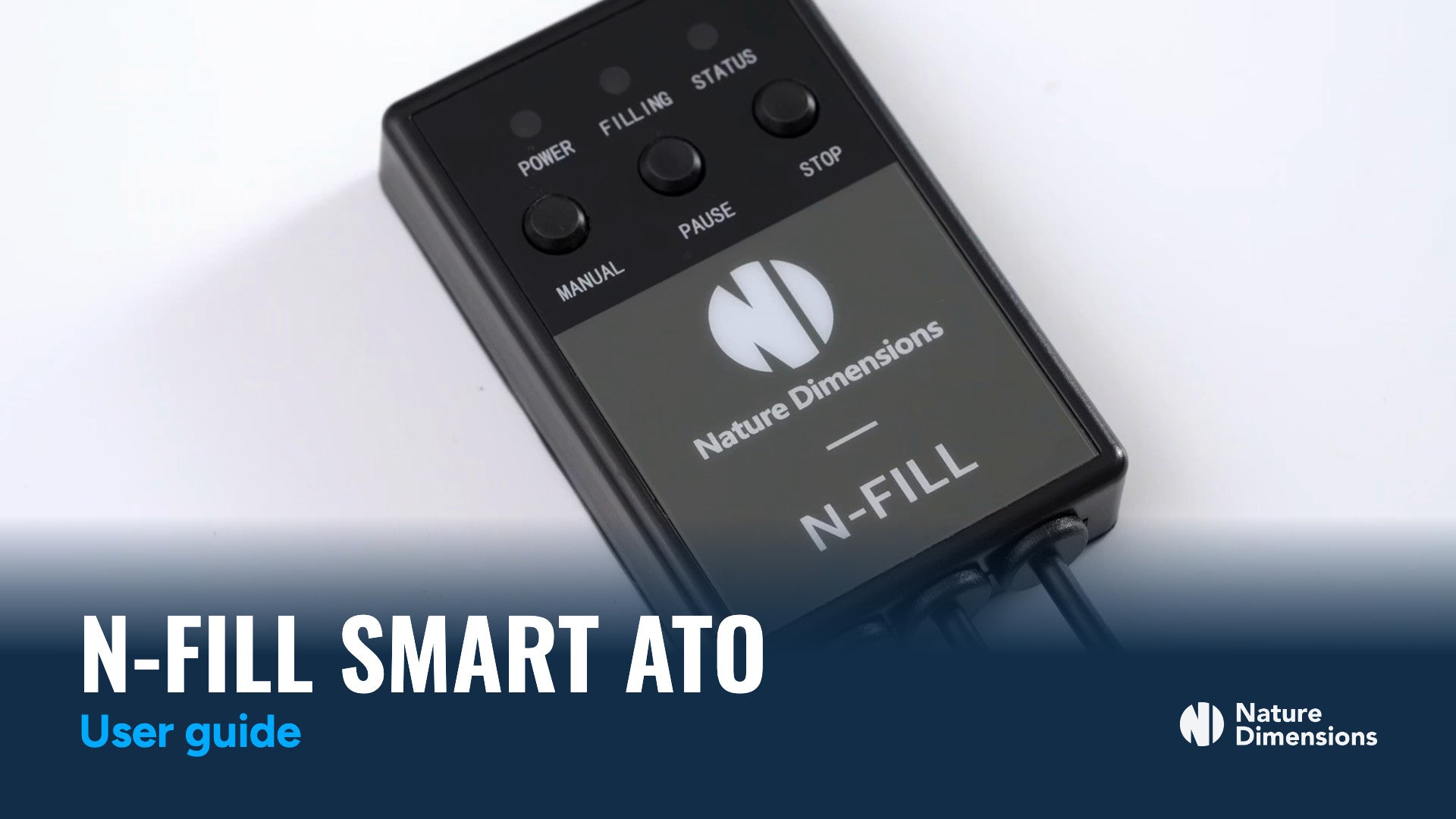

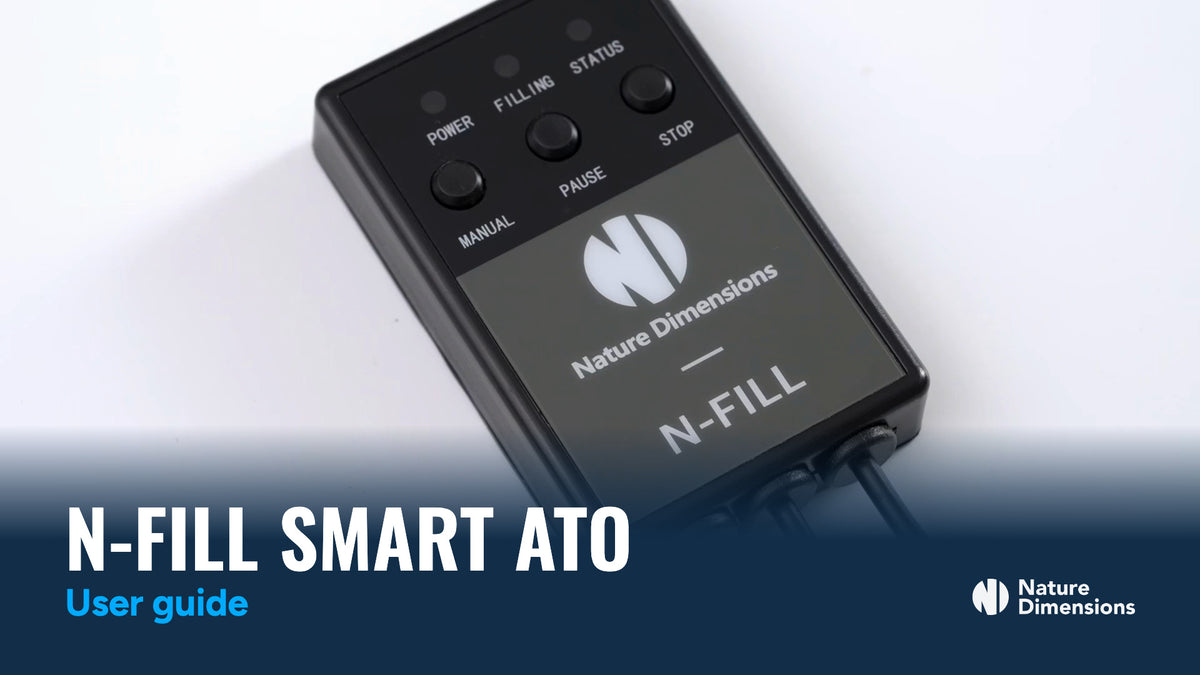

  Three buttons provide simple control:
  • Manual – hold to run the pump for priming or quick refills, release to stop.
  • Pause – press once for a 30-minute pause, ideal for feeding or light maintenance.
  • Stop – press once to disable automatic filling for 24 hours during major maintenance.
  Three LED indicators show system status at a glance:
  • Power – controller has power and is ready.
  • Filling – pump is actively adding water.
  • Status – off during normal operation, blinking when paused, solid red during Stop mode or over-fill alarm.
• Siphon breaker included
  The included siphon breaker connector and cover help prevent gravity siphoning when the reservoir sits higher than the tank. Keep the siphon breaker above the reservoir waterline and keep the refill outlet above the aquarium water surface; the N-Neon ATO Tubing Organizer helps secure that outlet position.
• Clean, intentional tubing routing

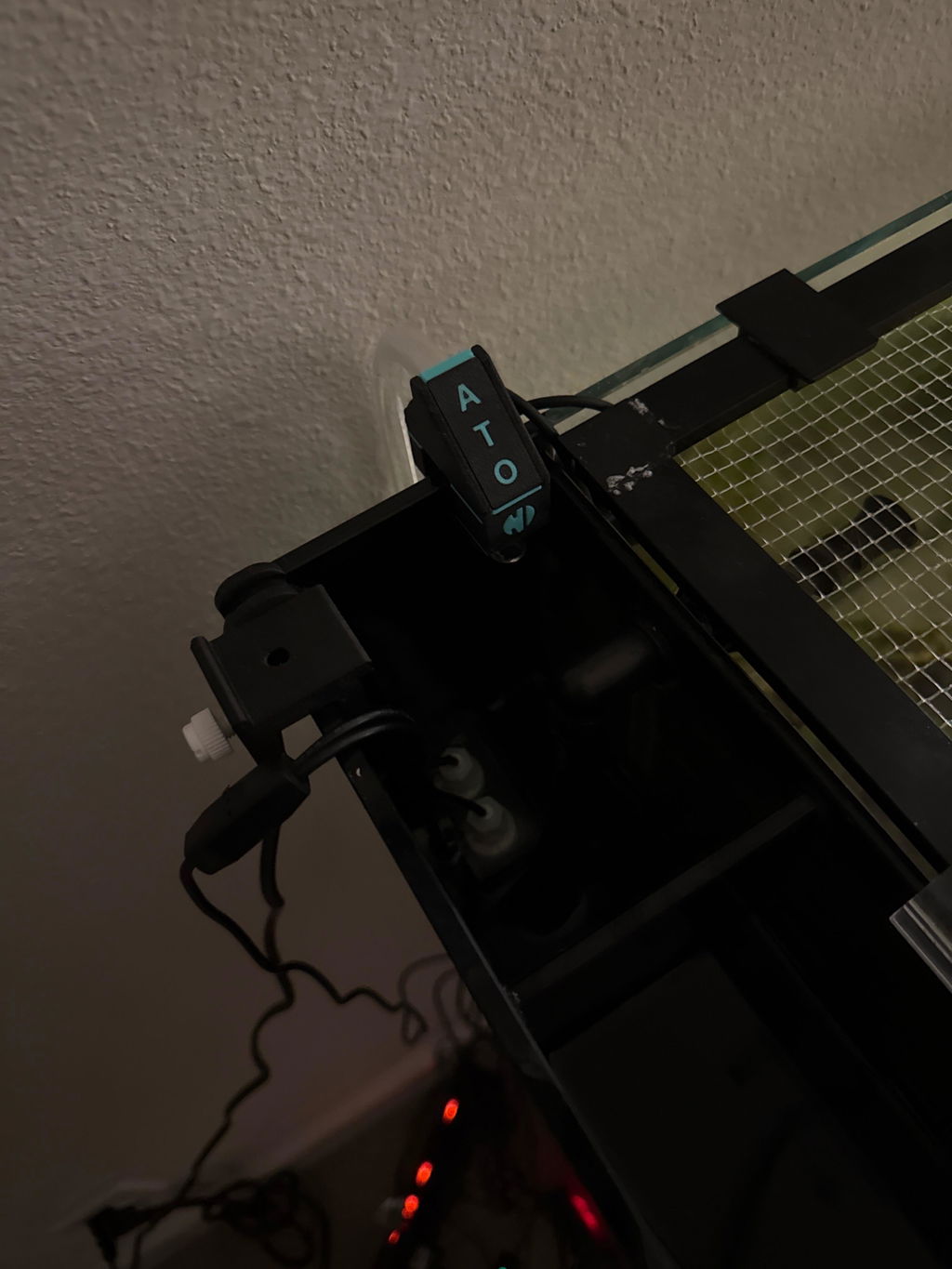

  An ATO needs a visible refill line at the aquarium. The included N-Neon ATO Tubing Organizer clips to the rim, holds the outlet in the correct above-water position, and turns a loose tube into a cleaner, more deliberate detail—especially around the rear edge of an AIO aquarium.
• Quiet, compact DC pump
  Small enough to fit common ATO reservoirs while providing sufficient head pressure and flow for most nano and mid-size tanks.
• Freshwater and saltwater ready
  Designed for long-term use in both freshwater and marine systems, including planted tanks and reef aquariums.
• UL-listed power adapter
  Includes a 12 V 1 A UL-listed power supply for safe and stable operation near water.

User Guide and Design Articles

• N-Fill Smart ATO User Guide
• Why N-Fill uses two low-water sensors and a purpose-built tubing organizer
• How to prevent aquarium ATO siphons and overfills
• ATO no-fill, slow-fill, cycling, and overfill troubleshooting
• How a fleece roller and ATO affect AIO rear-chamber water level

What’s Included

• N-Fill controller

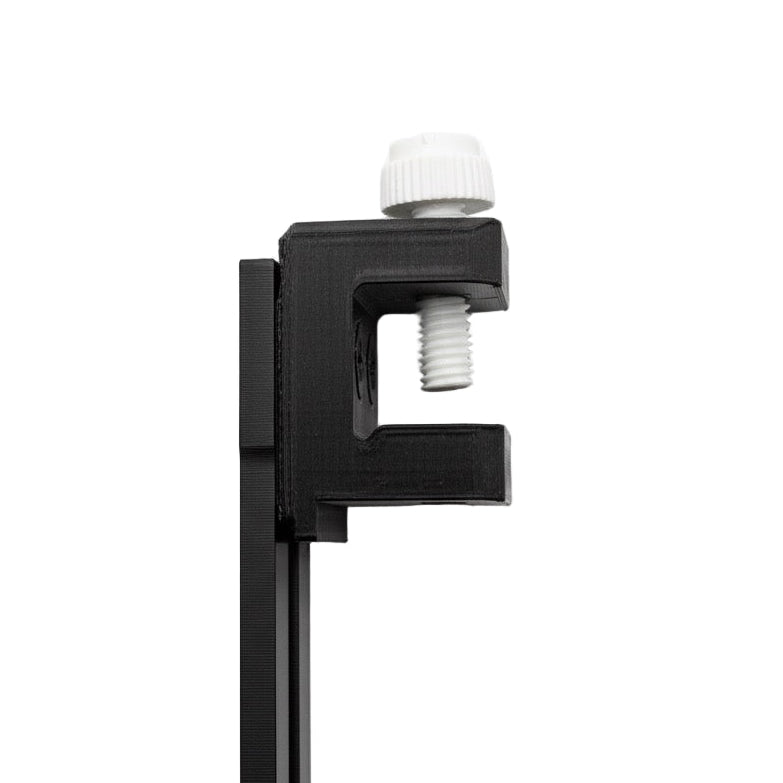

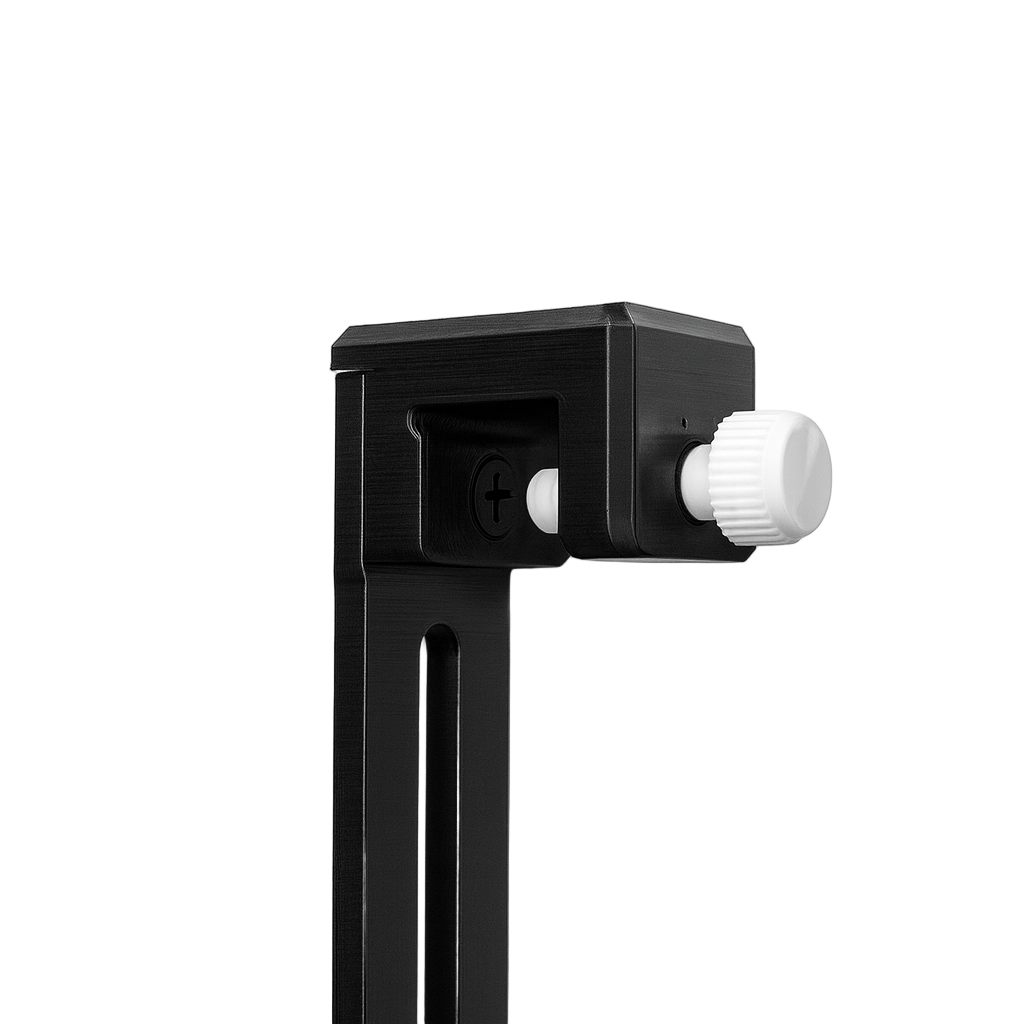

• Dual float sensors with adjustable holder
• N-Neon ATO Tubing Organizer
• Submersible DC pump
• Water tubing, 6.5 ft (2 m)
• Siphon breaker connector with cover
• UL-listed 12 V 1 A power adapter

Technical Specifications

Warranty

1-year limited warranty. Buy direct from Nature Dimensions to receive an additional 6-month warranty extension, for 18 months of total coverage.
