N-Clear M 自動フリースローラーフィルター（30～180ガロン）

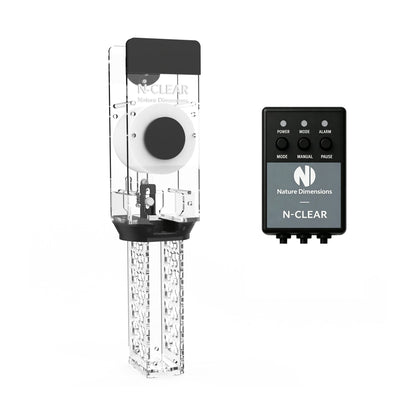

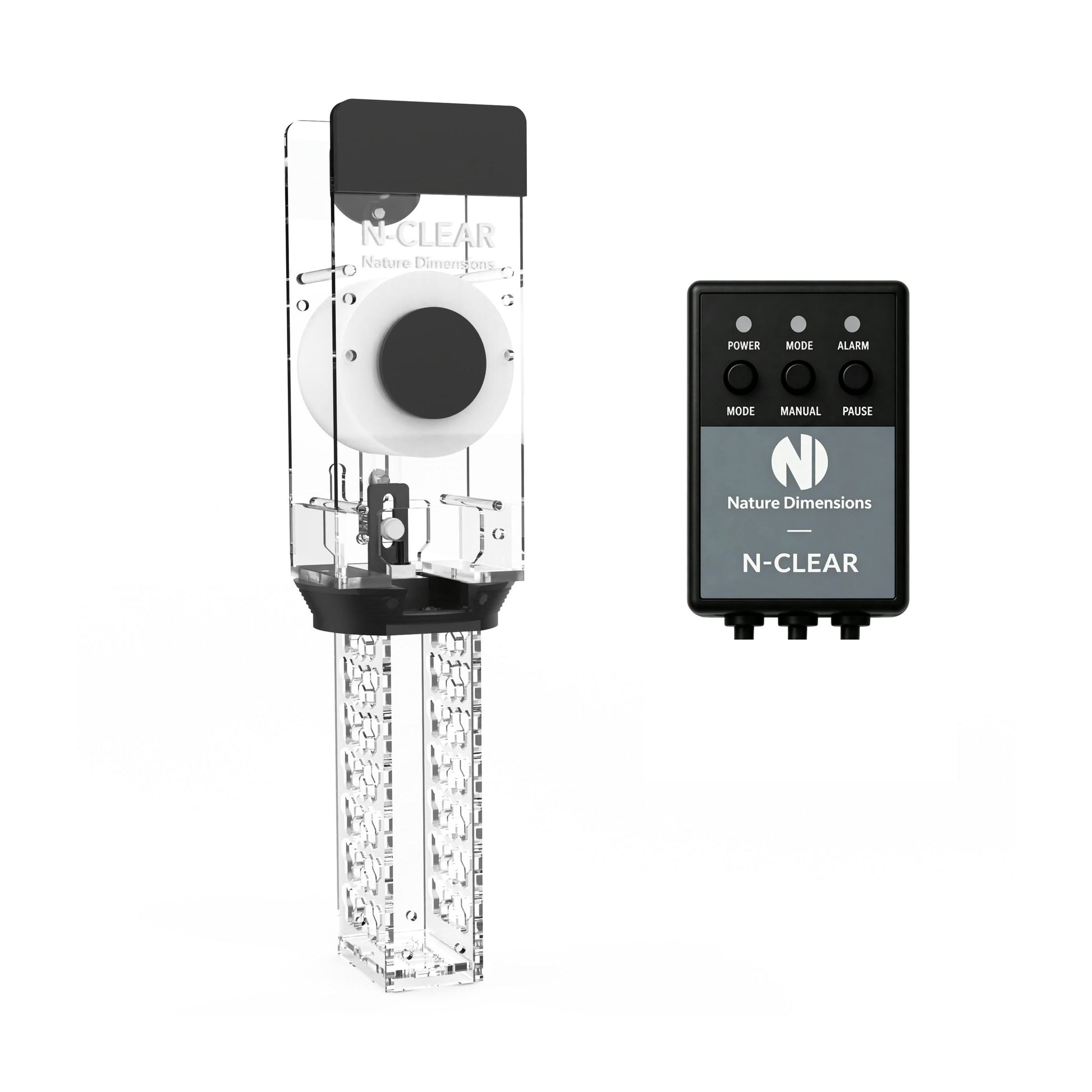

The N-Clear M by Nature Dimensions is a patent-pending automatic fleece roller filter that fits most standard 4-inch filter sock sumps and many popular AIO systems. This automated, high-efficiency filtration system helps keep your water crystal clear with minimal effort. Free N-Neon 3D fluorescent stickers included.

Key Features

• Automatic Roller Filtration
  High-density fleece advances automatically when clogged, providing continuous mechanical filtration with no manual intervention.
• Patent-Pending Cone-Style Fitting System
  The cone-style interface is designed to settle naturally into most standard 4" filter sock holders, accommodating normal holder variation without requiring sump modification.
• Flexible Adapter Support
  With N-Fit M adapters, also compatible with many systems with filter chamber openings larger than 4.3" × 4.3":
  • 7" × 4.5" rectangular filter sock systems
  • Many AIO systems
  • See the full list in the table below
• High Flow Rate

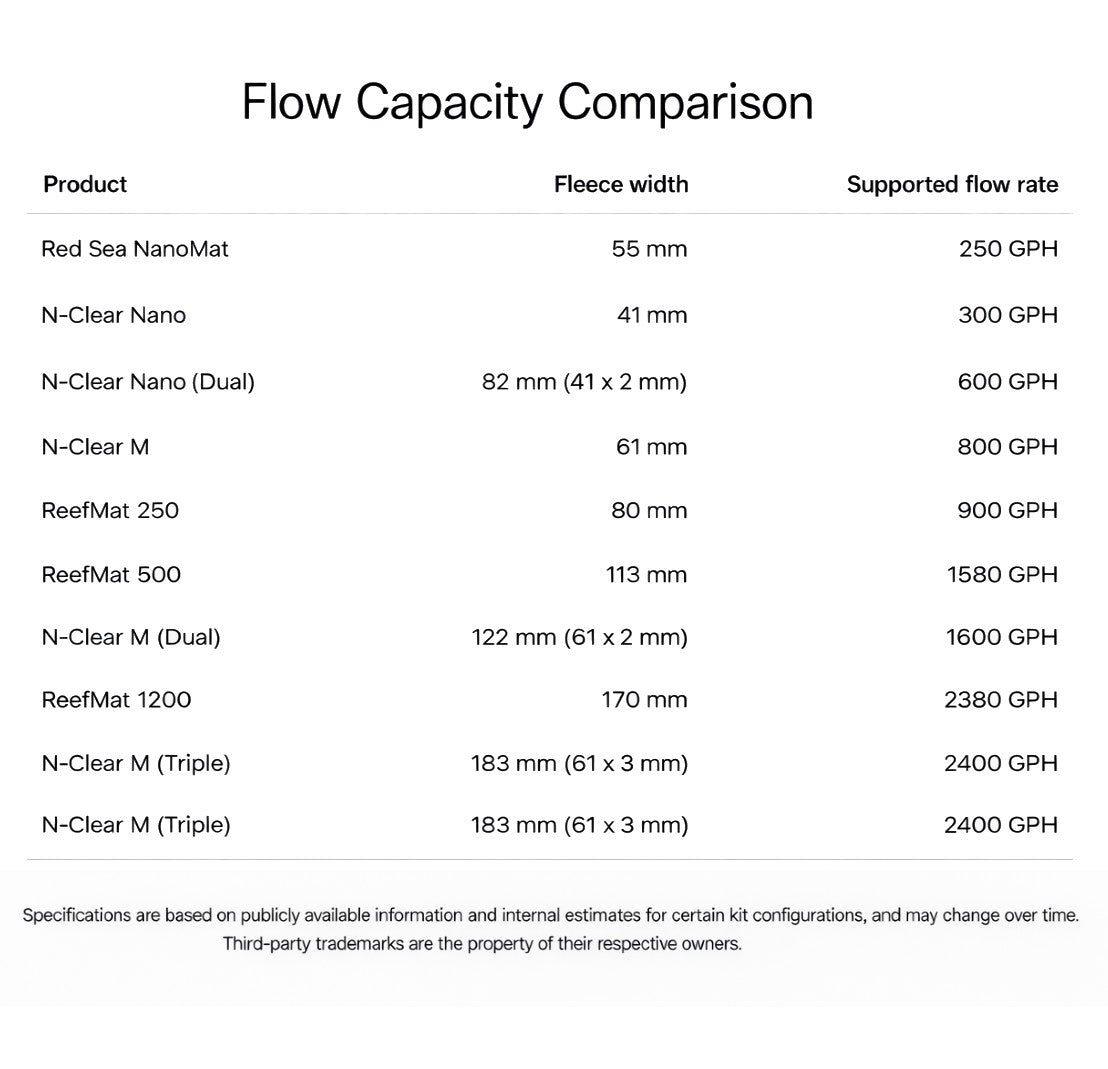

  Rated at up to 800 GPH / 3,028 L/h per filter: up to 1,600 GPH / 6,057 L/h with two filters and up to 2,400 GPH / 9,085 L/h with three filters.
• Supports Sync Mode
  Supports single, dual, and triple filter configurations, ideal for multi-filter-sock sump setups.
• Modular Capacity for Large Systems
  Instead of relying on one oversized roller body that may require a dedicated bay, removed sock tray, plumbing changes, or sump-layout modification, multiple compact M filters can use the sump's existing sock positions. As a general sizing guide, use one M for about 30–60 gal / 114–227 L, two for about 60–120 gal / 227–454 L, and three for about 120–180 gal / 454–681 L. Final quantity should follow the number of active sock openings, system flow, and bioload.
• Sensor-Based and Timer Modes
  Supports sensor-based mode and experimental timer mode.
  Sensor-based mode advances fleece in response to real water level changes.
  Experimental timer mode advances fleece on a fixed schedule without sensor input.
• Plug and Play

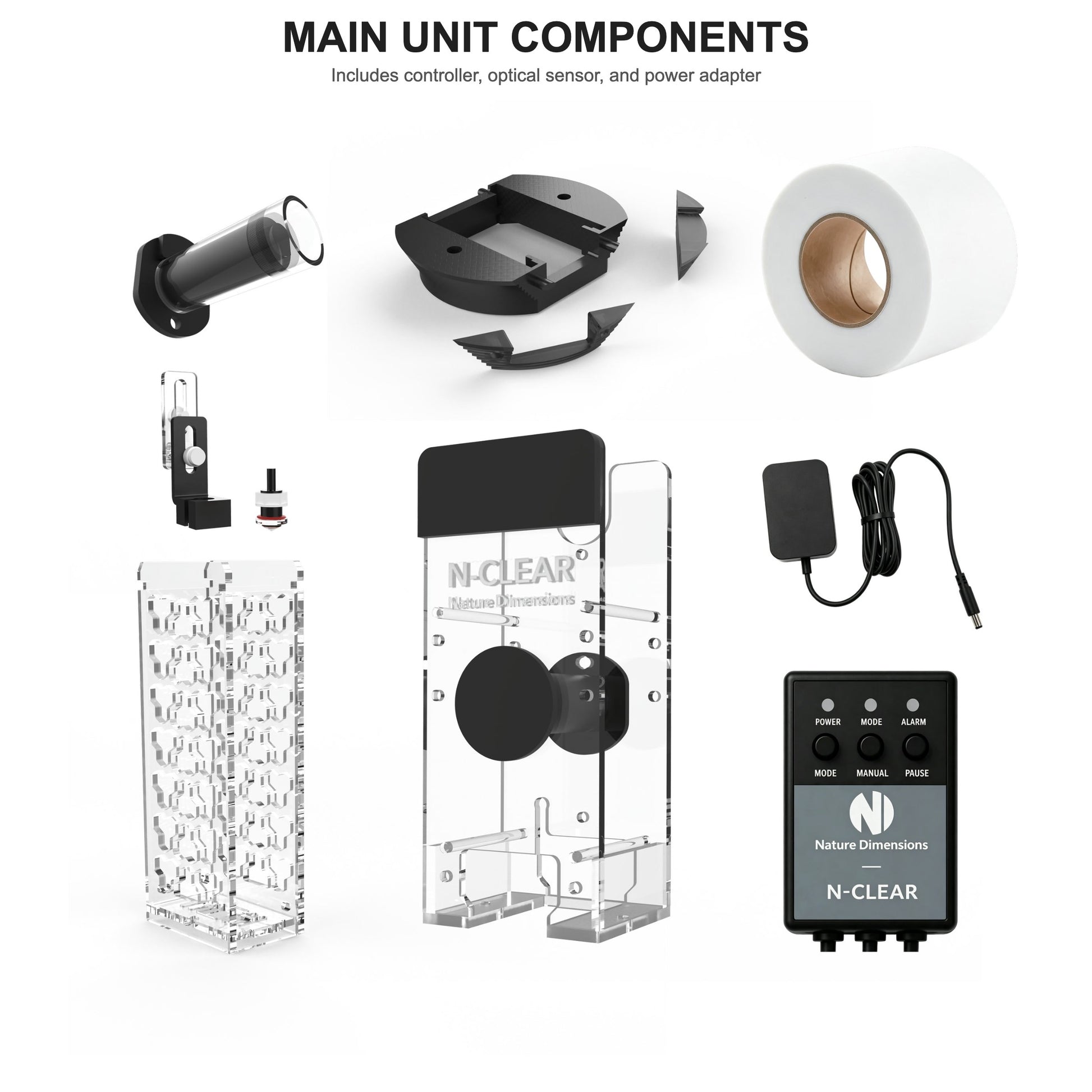

  Fully pre-assembled out of the box. Simply plug in a few connectors and start running within minutes.
• EasyThread Fleece Installation
  Innovative EasyThread installation method enables fast, clean fleece loading with minimal handling, making replacement simple and frustration-free.
• Freshwater and Saltwater Ready
  Designed for reliable operation in both freshwater and marine environments.
• FDA Food-Grade Fleece Rolls
  First in the industry. The fleece is made from food-grade material and independently tested by a certified third-party lab to meet U.S. FDA food-contact standards (21 CFR 177.1630).

Main vs Extension

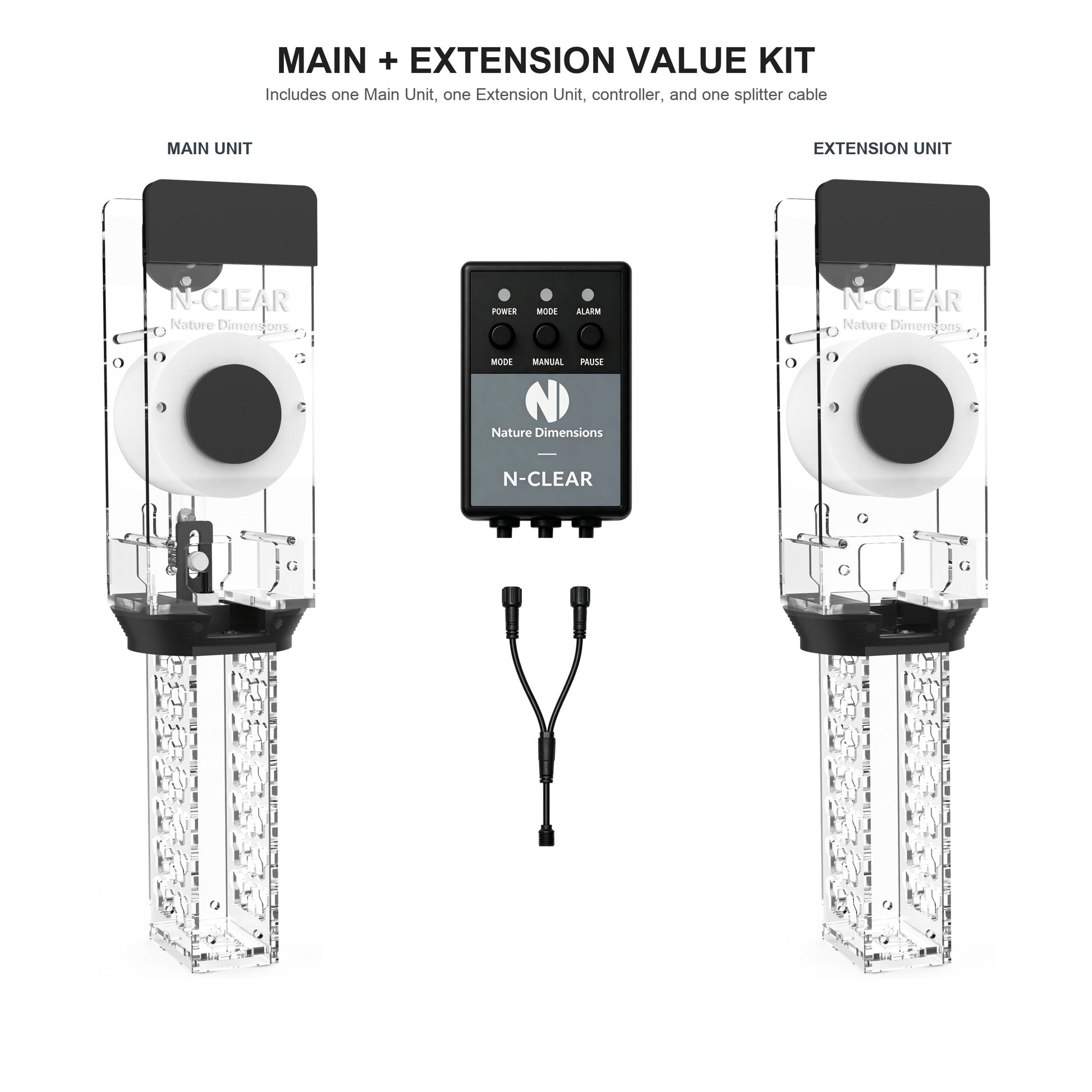

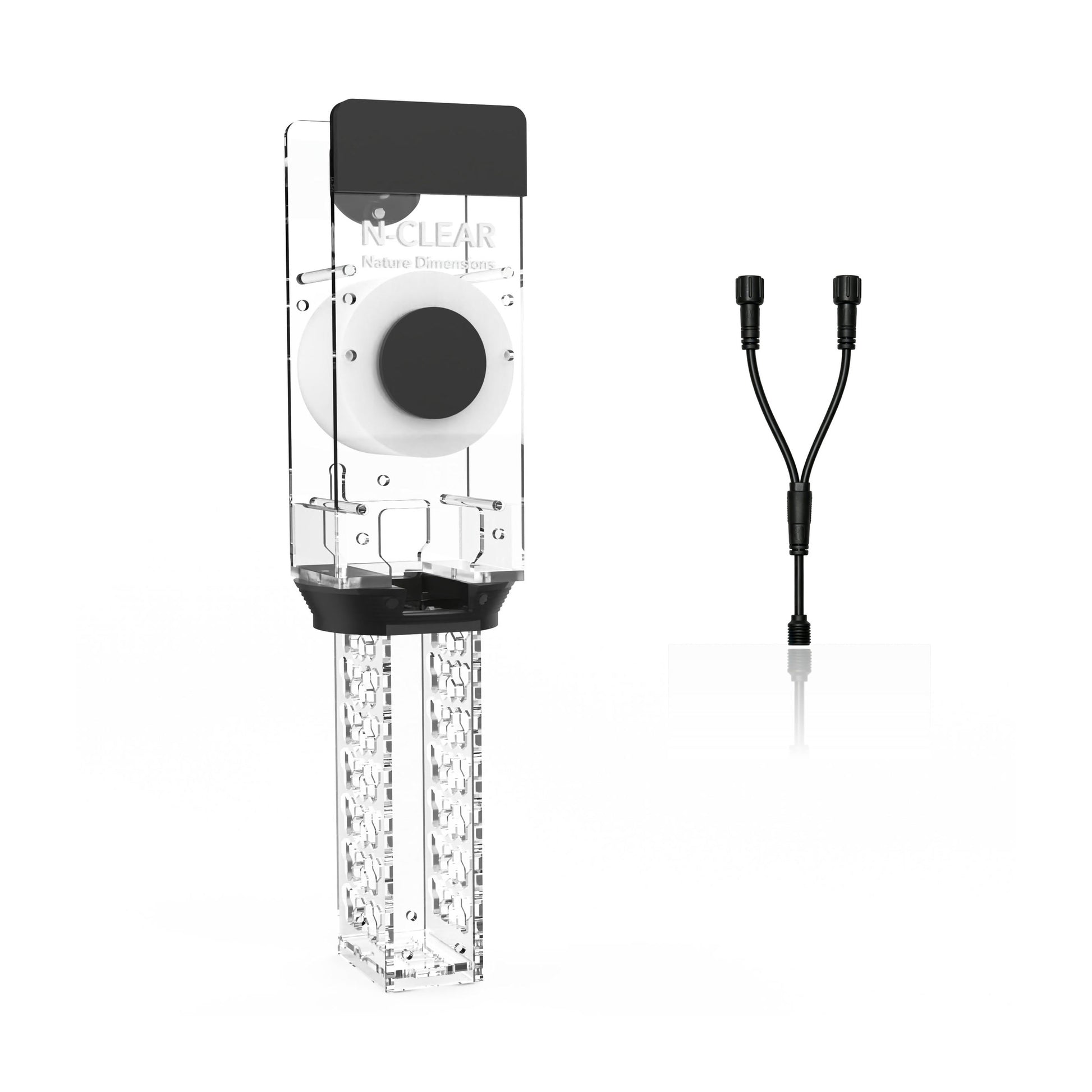

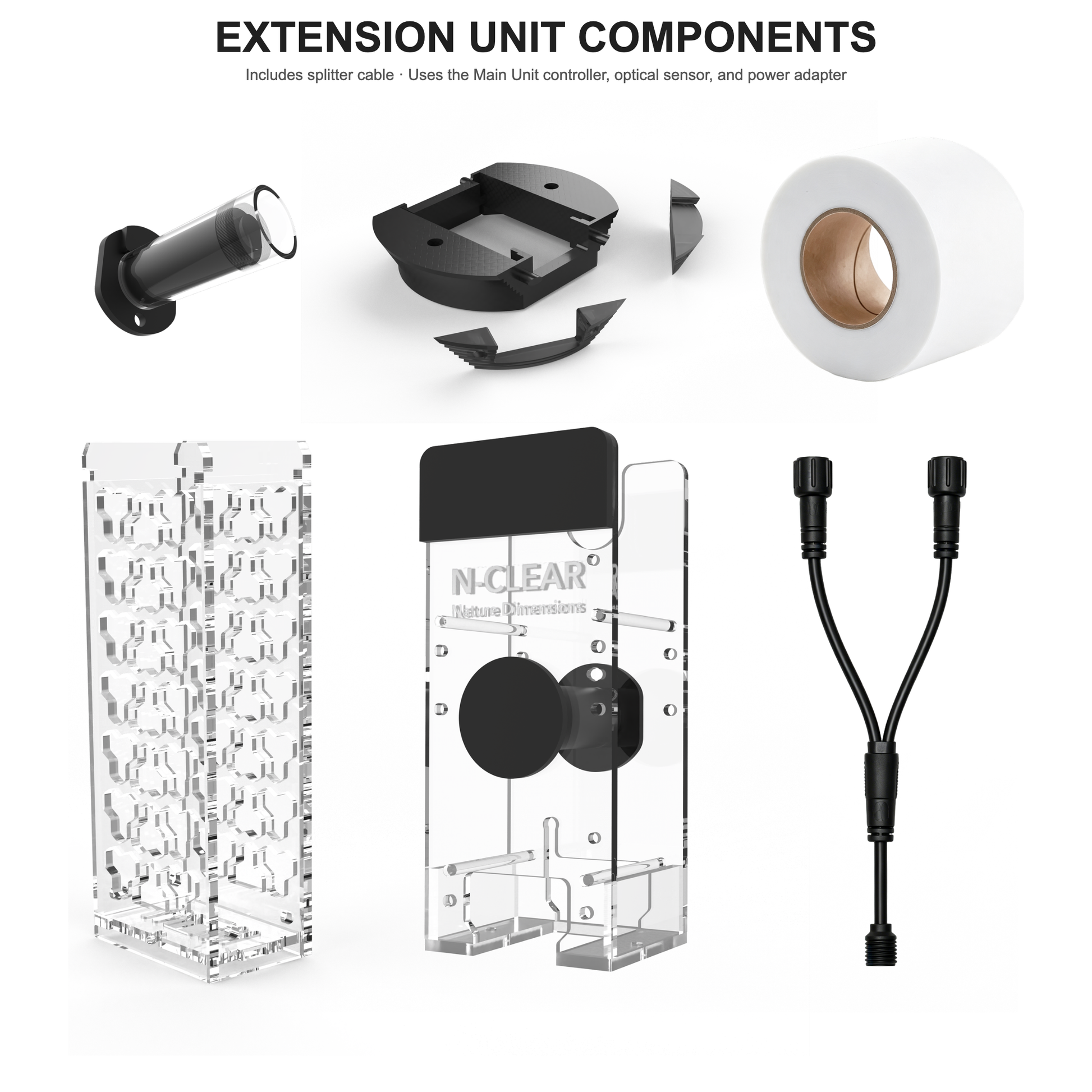

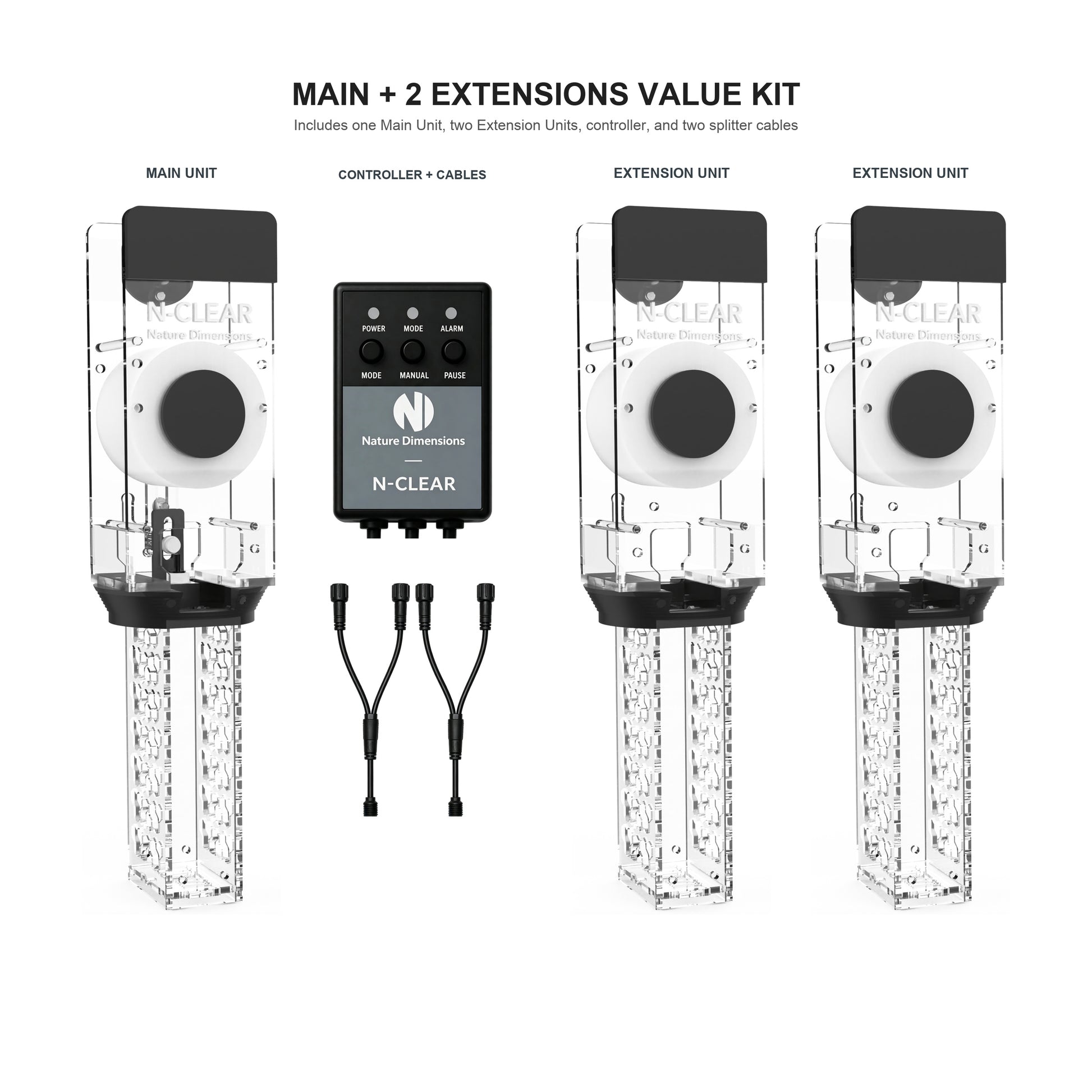

The extension unit does not include a power adapter, controller, or sensor. A dual-link cable is included. It must be connected to a main filter controller to run in Sync mode, and all connected motors advance together when the main sensor triggers. Sync mode supports single, dual, and triple filter configurations. A multi-filter setup is highly recommended for systems with multiple filter chambers, especially systems above 60 gal / 227 L. As a general guideline, use one M for about 30–60 gal / 114–227 L, two for about 60–120 gal / 227–454 L, and three for about 120–180 gal / 454–681 L. The final configuration should follow tank volume, flow, bioload, and the number of active sock openings.

For unused openings, you can use the N-Fit Filter Sock Cover to block water flow through the opening.

User Manual

Click here to learn more about the details.

Compatibility and Configuration Articles

• Complete N-Clear M tank, sump, and adapter compatibility guide
• N-Clear Main vs Extension configurations, dual-roll behavior, and cables

Warranty: 1-year limited warranty. Buy direct from Nature Dimensions to receive an additional 6-month warranty extension, for 18 months of total coverage. View warranty policy.

Technical Specifications
